.Series J-Series Displacement 0.50 in³/r Maximum RPM-Continuous 1043 rpm

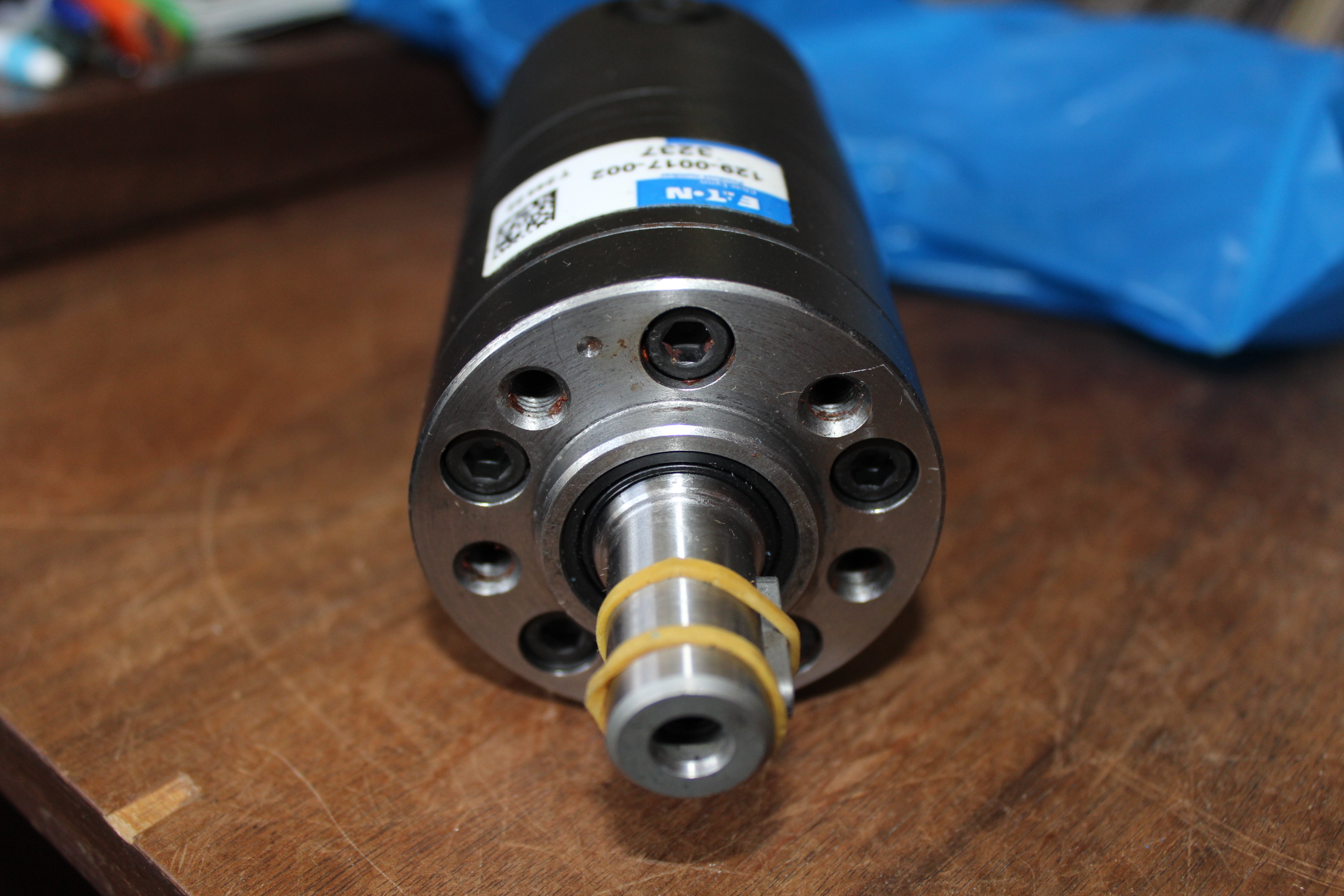

Continuous Torque 141 in Continuous Pressure 2030 psi Continuous Flow Rate 4.5 gpm Motor Port Type Straight Thread O-Ring SAE Motor Port Size 9/16–18 UNF-2B Shaft Type Straight Output Shaft Size 5/8 in Straight - Square Key Seal Type Standard Case Drain 3/8–24 UNF-2B SAE O-Ring Ports Inlet and Outlet Port Size Straight Thread O-ring SAE 9/16-18 UNF-2B Ports Size 6 Actual Port Type .5625-18 Unf-2B Sae O-ring Port, Side Ported Actual Output Shaft Dia 15.88 [.625] Straight With Straight 4.72 [.186] Sq Key With .250-28 Threaded Hole Actual Mounting Flange 5 Bolt: Dia 31.47 [1.239] X 5.1 [.20] Pilot .250-28 Unf Mounting. Intermittent Flow Rate 5.5 gpm Intermittent Pressure 2400 psi.
